Full Automatic Carton Case Packer

Basic Info

Packaging	Cartons
Packaging Material	Metal
Transport Package	Wooden Case
Specification	metal
Trademark	COOLYOUNG
Origin	China
HS Code	8422303090
Production Capacity	200 Set/Year

Product Description

KY-900ZX Master carton packing machine (can be customized) :

Full Automatic Carton Case Packer

GENERAL FEATURES:

The vertical cartoning machine was designed for installation downstream of the packaging line, but also as an independent unit. The pick & place ensures fast and accurate picking of products arriving from the loading conveyor belt and precise box filling. Different types of products can be processed. They can be manufactured using different configurations inside the box according to the request, and the box itself can have various dimensions, the product arrival station, product picking and box opening are compact. Construction is roust, but at the same time they are all 'separable' to allow the operator full access. Having filled the boxes, they are pushed towards the exit and the machine closes the flaps and tapes the 'pads'. Options available, hot glue.
Finally, a cartoning machine with all the automatic and automated adjustments.

SPECIAL FEATURES:

The strengths of the vertical cartoning machine are:
Compactnes, reduced size, high speed up to 20boxes/minute with multiple pick & place.
Automated adjustments.
Fast format change, easy access to the parts to adjust, movements on the dovetail guides and recirculating ball slides.
Siemens management PLC.

MAIN DETAILS:

Full Automatic Carton Case Packer

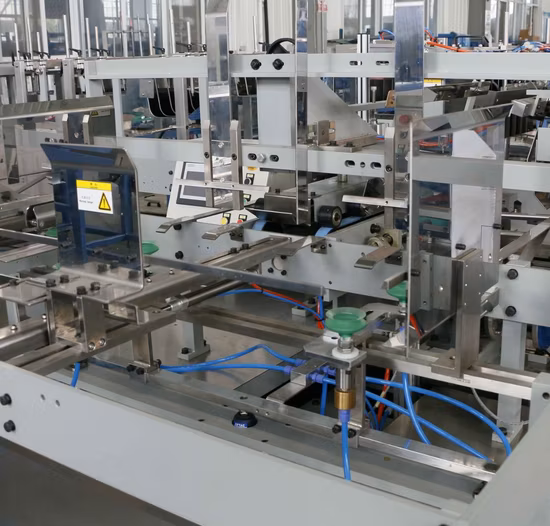

Automatic case erectorThe case erector forms perfectly rectangular cartons, guaranteeing a trouble-free packaging process.

Full Automatic Carton Case Packer

PICK & PLACE SYSTEMFilling from the top. Filling is carried out automatically by a system that picks the products and deposits them inside the box. The picking system varies based on the type of product.

Full Automatic Carton Case Packer

PRODUCT FEEDING BELTProducts are placed on the feeding belt that bring it to the filling zone.

Full Automatic Carton Case Packer

Automatic case closer The case closer automatically folds the top case flaps and closes them with tape.

TECHNICAL PARAMETERS:

No.	Name	Value
1	Output	5-20 carton/min. according to the size, number and arrangement of packing objects, the form of combination.
2	Carton size	L460 * W380 * H260mm Special spec. can be customized
3	Arrangement form	Such as the 5 row * 5colum *4 layer
4	Packing product size	L(30-580) W(25-450) H(20-350)mm
5	Transmission height of front end equipment	850mm
6	Packing range	Medical box special machine
7	A door, window, cover	Plexiglas
8	Equipment material	Main frame carbon steel baking paint, contact parts with packing box adopts SUS304
9	Total power supply	Less than 8KW
10	Single machine power	5KW
11	Air consumption	800 liters/points
12	Gas pressure	0.7MPa
13	Weight	Less than 1.2 tons
14	Mainframe size (connection part is not included)	L4100 * W2350 * H2300 mm
15	Working voltage	380V/50HZ

CONFIGURATION:

Our good quality is reflected in:

1. Box packing machine equipped with whole set Siemens configuration. Servo motor. 2. All Siemens PLC 5 points reserved for docking MES and ERP system data. 3. COOLYOUNG has series number for every spare parts in box packing machine, it make us scientific management conveniently, and ensure the customer maintain equipment and replace spare parts more precise and fast.4. Surface treatment of every spare parts are strictly controlled precision in processing and assembling. Such as every spare parts are wrapped with newspaper one by one avoiding scratches on the surface, etc5. COOL YOUNG focus on high quality equipment, carefully polished every spare parts to the best before assembly, most of spare parts are polished by grinding machine, guarantee the stability of equipment operation and reduce the noise in running. 6. Our team technology design, assembly and after-sale staff are engage in packing industry more than 15 years working experience. 7. Fast and efficient to provide after-sales response.
