Semi Automatic Aerosol Hair Spray Snow Spray Aerosol Gas Filling Equipment Spray Paint Production Line Butane Gas Refilling Machine
Description
Basic Info
| Model NO. | AL-FT-CQ |
| Feed Cylinder Structure | Single-Room Feeding |
| Filling Principle | Pressure |
| Structure | Linear |
| Packaging | Box |
| Packaging Material | Film |
| Name | Semi Automatic Gas Filling Machine |
| Be Used for | Aerosol Product |
| Product | Spray Paint Aerosol Product |
| Advantage | Standard/Customizable |
| Functions | Gas Inflating |
| Control | Pneumatic |
| Material | Stainless Steel 304 |
| Pneumatic Element | Airtac |
| Gas Volume | Max.450ml (Customzied) |
| Sitable Gas | LPG,Dme,CO2,No2 |
| Suitable Cans Diameter | 35-70mm (Adjusted, Customized) |
| Suitable Cans Height | 80-330mm (Adjusted, Customized) |
| Transport Package | Standard Wooden Case |
| Specification | 1060*660*1550mm |
| Trademark | Aile |
| Origin | China |
| HS Code | 8422303090 |
| Production Capacity | 10 Units/Month |
Product Description
Introduce 1.The machine is controlled by Taiwan Airtac pneumatic system.2.The machine is suitable for Aerosol gas filling(LPG,DME, N2,CO2).3.The machine is simple in structure and easy to operate.Very suitable for the experimentalroom and medium-sized and small-scare company.4.The gas filling machine adopts standard cylinder to drive, higher stability, more stable action,more reliable performance.5.The machine is made of 304 stainless steel. High quality machines will extend the service lifeof machines and can create more value for customers6.The cylinders in the machine can be adjusted to fill. Suitable for different diameter and differentcapacity of aerosol can. No need to changethe mold, more convenient operation.7.One person can operate the whole set of semi-automatic aerosol filling machine.Product Parameters
| Name | Semi automatic aerosol gas filling machine |
| Model | AL-FT-CQ |
| Production speed | 700-900 cans per hour (based on filling volume) |
| Suitable can's height | 80-330mm |
| Suitable can's diameter | 38-70mm |
| Suitable valve size | 1 inch |
| Gas filling capacity | 450ml |
| Filling accuracy | ±1 |
| Work pressure | 0.6-0.8 Mpa |

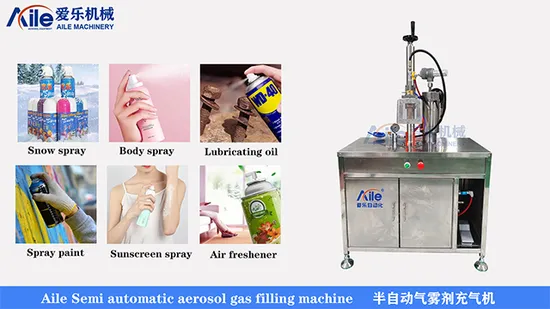

| Applications | aerosol products/Air freshener/Deodorant Spray/Spray paint/snow spray/Ribbon spray |
Q1: What is the aerosol machine price?
A: Different machine have different price, price is negotiable. It can be changed according to your quantity or customization requirements.
Q2: How to install and use machine?
A:We provide installation guide (document and vedio), operations and maintenance manual.also some adjustment vedio
Q3: What kind of certificate you have?
A: Our CE and ISO9001 certifications;The aerosol line also has an explosion proof certificate
Q4:What is the longest guarantee time?
A: We offer you at least a 1-year warranty on our high-quality aerosol filling machines and lifetime technical support.
Q5: Do you provide customized service?
A: Yes. We can design the machine according to your requirements (material, power, filling, type of cans, layout of your factory,etc.).
Q6: When can I get the quotation after the inquiry?
A: In 24 or 48 hours.
Q7: What is the delivery time?
A: Generally speaking, Semi automatic machine need 15 working days after receiving the prepayment.For automatic machine, normally need 30-35 working days
Q8:What is your payment methods?
A: T/T 40% in advance.60% balance before delivery. L/C can also be accepted.
