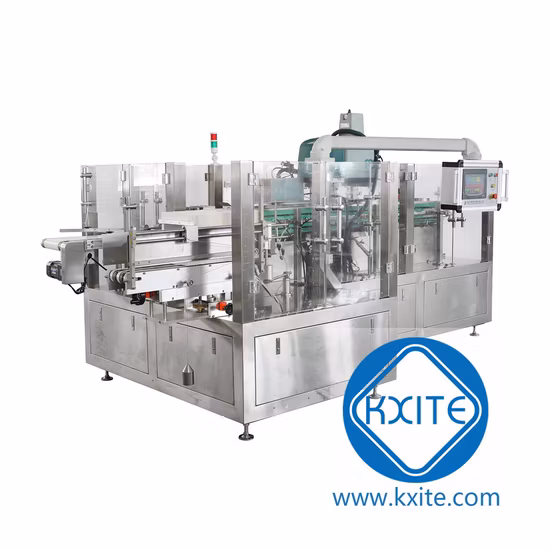

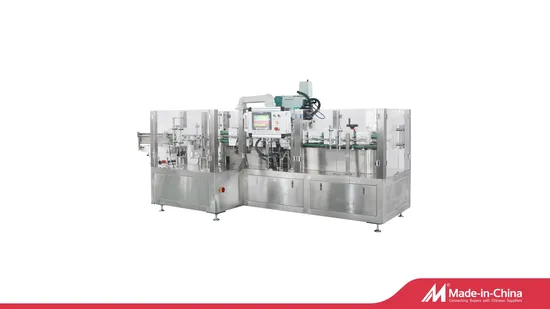

Fully Automatic Automatic Vertical Cartoning Box Pack Carton Machine Disposable Paper Box Packing Machine

Basic Info

After-sales Service	Yes
Warranty	1 Year
Automatic Grade	Automatic
Application	Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
Type	Forming Filling Sealing Machine
Forming Species	Box Molding
Forming Function	Forming, Filling, Seal
Driven Type	Electric
Material Type	Solid
Packaging	Cartons
Packaging Material	Paper
Voltage	220V/380V
Packing Speed	30-80 Boxes/Min
Advanced Customization	Relevant Configurations Can Be Added According to
Control System	PLC Microcomputer Control System, Easy to Operate
Local Service Cation	USA, UK, Malaysia, Mexico and Indonesia
Customized	Acceptable
Transport Package	Export-Standard and Sea-Worthy Wooden Case
Specification	Customized
Origin	Shanghai
HS Code	8422303090
Production Capacity	80PCS/Month

Product Description

Automatic Cartoning Machine ---Item PT-CP-550

Application :for packing individual boxes into cartons

Product Description

1. Automatic Case Erector

It can automatically carry out carton, open carton, bottom folding leaf folding, carton bottom tape sealed, and output.Technical requirements
The whole operation process must be completed in a stable state, with sufficient reliable positioning and protection measures, and shall not cause damage and damage to cartons. Production capacity: 1-6 cases per minute.
Features:

Open the carton flat and beautiful. Box open success and qualified rate ≥99.9%.
It has a control touch screen for independent debugging and production control of single machine, and has digital, Chinese display and prompt for output count, machine running speed and equipment failure. There are fault alarm, fault shutdown and emergency stop and other safety protection functions.
Carton size change can be easily and accurately adjusted by hand wheel

Technology Parameters:

Mechanical Dimensions	L2000mm×W1900mm×H1450mm
Applicable range of cartons (mm)	L(Max)600 -(Min)200
	W(Max)500 -(Min)150
	H(Max)350 -(Min)100
Finished carton capacity	720pcs/h(max)
Carton stacking amount	100pcs/h(corrugated box)
Material of carton	Corrugated Paper of general specification
Tape used	OPP;Kraft paper 38 mm or 50 mm width
Carton size change	Adjust handle about 1min.
Power supplier	1ph 220V
Air source	0.5MPa(5Kg/cm2)
Air consumption	300L/ min
Mechanical dead weight	About 600Kg

2. Packing Machine:
after automatic palletizing of carton, push empty box to box
Technical requirements:Palletizing specification and carton size change can be convenient and accurate adjustment.With single independent debugging and production control, control screen interface output count, machine speed adjustment and equipment failure and other digital, Chinese display and prompt.With carton quality and carton reserves detection and monitoring, fault alarm, fault shutdown and emergency shutdown and other safety protection functions.The qualified rate of packing is 100%;(when the packing failure is caused by special reasons, the equipment alarm stops, and the material (carton) is handled manually).Smooth packing, no damage to carton appearance, finished carton appearance intact, neat, appearance qualified rate 99.5% Technical parameters:

MachineDimensions	L 2100×W 1300×H 1900mm
Packing capacity	80~500 boxes/minute (related to box size and volume)
Packing items	Cartons
Power supply	AC220V 50Hz
Power	0.4 Kw
Air pressure	0.5~0.6 Mpa (5~6Bar)
Air consumption	350L/min
Machine Weight	About 700 kg

3. Automatic Box Sealing Machine
Can automatically fold the upper part of the carton, tape paste seal box.Technical requirements:
1.The whole operation process must be completed in a stable state, with sufficient reliable positioning and protection measures, and shall not cause damage and damage to cartons. production capacity ≥5 cartons/min.
2.The sealing box is flat and beautiful. Box success sealed and qualified rate 100.
3.It has a touch screen for independent debugging and production control of single machine, and has digital, Chinese display and prompt for output count, machine running speed and equipment failure. And there are fault alarm, fault shutdown and emergency shutdown and other safety protection functions. (Alternative)
4.Carton size change can be easily and accurately adjusted by hand wheel.
Technical parameters:

Dimensions	L1830mm W835mmH1640mm
Applicable carton scope	L( length) max600 mm - minimum 200 mm
	W( width) max 500 mm - minimum 180 mm
	H() Maximum 350 mm - minimum 100 mm
Sealing capacity	Maximum 720 cartons per hour
Power supply	220 V 50Hz single phase
Gas source	50 L/min
Machine Weight	About 250 KG; 4 foot wheels

4. Roller conveyor
It is used for connecting and conveying between open box machine, packing machine, sealing machine, strapping machine and palletizing (304 stainless steel is used for roller and side plate support).

Technical requirements
reserved paperboard drop machine, manual drop machine, supervision code scanning, corner labeling machine, inkjet printer station
Features:
1. Delivery capacity to meet the requirements of packing efficiency, speed adjustable.
2. Packaging specification size changes can be convenient and accurate adjustment.
3. The whole conveying process must be stable, smooth and reliable in place, with sufficient reliable positioning, guidance and protection measures, and shall not cause damage and damage to the conveying products.

5.Line Transmission and Control System
Packing conveyor belt (auxiliary machine): the packaging of small boxes, the collection of conveyor belt products automatically arranged, sent to the packing machine mechanism.Technical requirements:1. Delivery capacity ≥300 boxes per minute. The speed is adjustable.2. Packaging specification size changes can be convenient and accurate adjustment.3. The whole conveying process must be stable, smooth and reliable in place, with sufficient reliable positioning, guidance and protection measures, and shall not cause damage and damage to the conveying products.4. Conveyor belt can be installed with laser coding equipment.5. Contains palletizing flip mechanism.

Related Product

Fully Automatic Automatic Vertical Cartoning Box Pack Carton Machine Disposable Paper Box Packing Machine

Company Profile

PowerBuilder, as a global manufacturer of industrial automation equipment system and advanced gas separation system of Oxygen & Nitrogen, was established in Y2015, with headquarter in Shanghai, China, and subsidiaries in USA, Mexico, UK, and Malaysia provide pre and after sales service
The research and development field is mainly engaged in the field of automation and gas purification including system integration, technical consulting, technical service, transfer and foreign trade. It is an in-depth cooperative enterprise of East China University of Science and Technology.
The company adheres to the tenet of "customer first, credibility wins, superior quality, good quality", and serves customers with the best products and technologies. With advanced management and technological innovation to build a leading manufacturer of high-end manufacturing, innovation, enterprising, teamwork and to be excellence.
Power Builder has implemented quality management system EN ISO 9001: 2015, EN ISO 13485: 2016, and all our products are qualified Euro CE standards.

Fully Automatic Automatic Vertical Cartoning Box Pack Carton Machine Disposable Paper Box Packing Machine

Powerbuilder customers

Fully Automatic Automatic Vertical Cartoning Box Pack Carton Machine Disposable Paper Box Packing Machine

- Our Service-
1. Setting trace file for every sold product, quarterly survey for every sold product.2. Providing remote instruction and training for free.3. Providing on-site services and repairs for free during warranty period
4. Spare parts and on-site service would be charged with best price after warranty period.5. 7*24 hours online service for free, solution within 48 hours. 6. If customer required, assigning experienced after-sales engineer for on-site service with 7 days. (Visa apply should be considered)

- After Sales Support -
Warranty
The Guarantee/Warranty Period shall be a period of twelve months after on-site startup & commissioning or eighteen months after shipment, whichever occurs first. If any trouble or defect, originating with the design, material, and workmanship or operating characteristics of any Goods, arises at any time during GUARANTEE/WARRANTY period, PB shall, at his own expense and as promptly as possible, make such alterations, repairs and replacements.On-Site SupportPB can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified English-speaking engineer at step shall obtain all permits and licenses required to perform the services under this Agreement.
in USA, Mexico, UK, and Malaysia provide pre and after sales service provide onsite service

Certifications

Fully Automatic Automatic Vertical Cartoning Box Pack Carton Machine Disposable Paper Box Packing Machine

FAQ

1. Are you manufacturer or Trade Company?
We are the manufacture automation system, founded in 2015, located in Shanghai Pudong district. in USA, Mexico, UK, and Malaysia provide pre and after sales service provide onsite service

2. How to get a prompt quotation,what detail information needed ?

Carton size : mm
Material inside the Carton.
Box size: mm
How many box per carton?
Provide a video and picture for manual operation
Packing speed: ****Carton/Min
position direction of packing:Provide a pic
Whether install backing plate? Put any documents inside?
Is there appointed brand for robot like Kuka ?

3. How long is lead time : 25 days of standard item . 50 days for customized system .
